Martin Wisman PMF 1200
 Klikni za uvećanje |
|

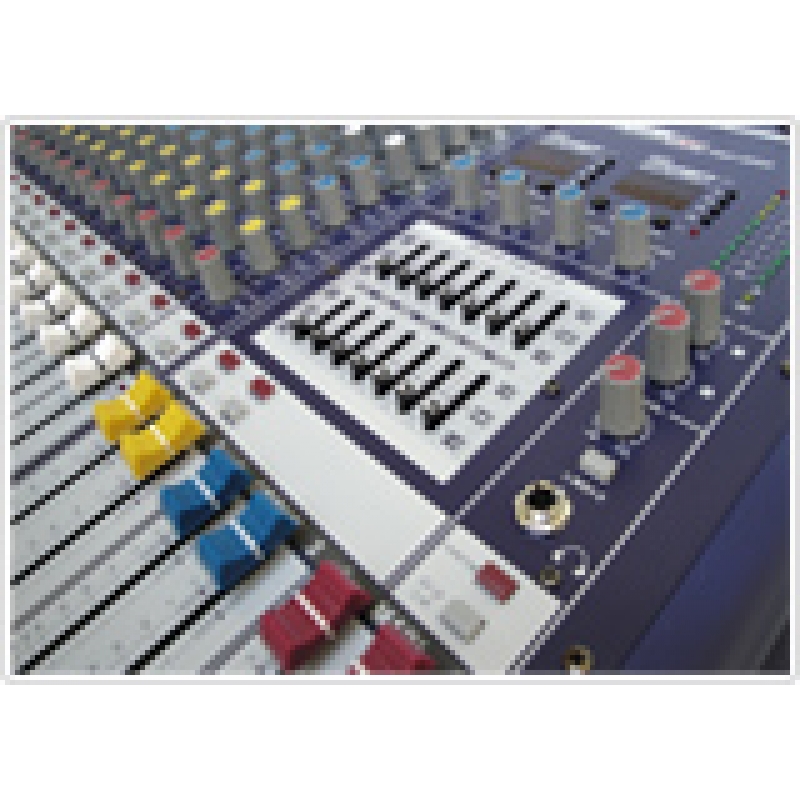

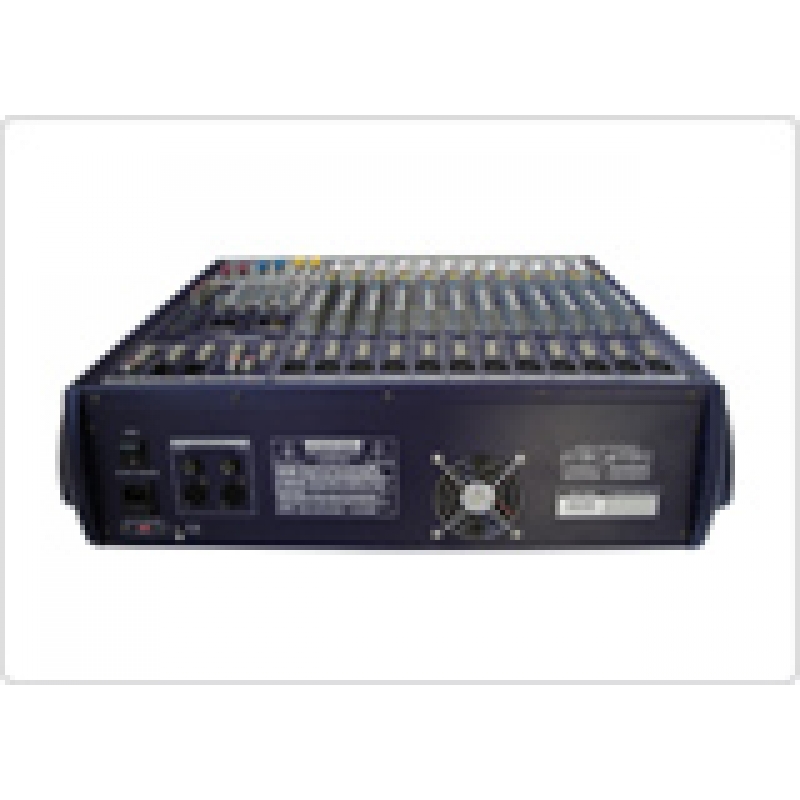

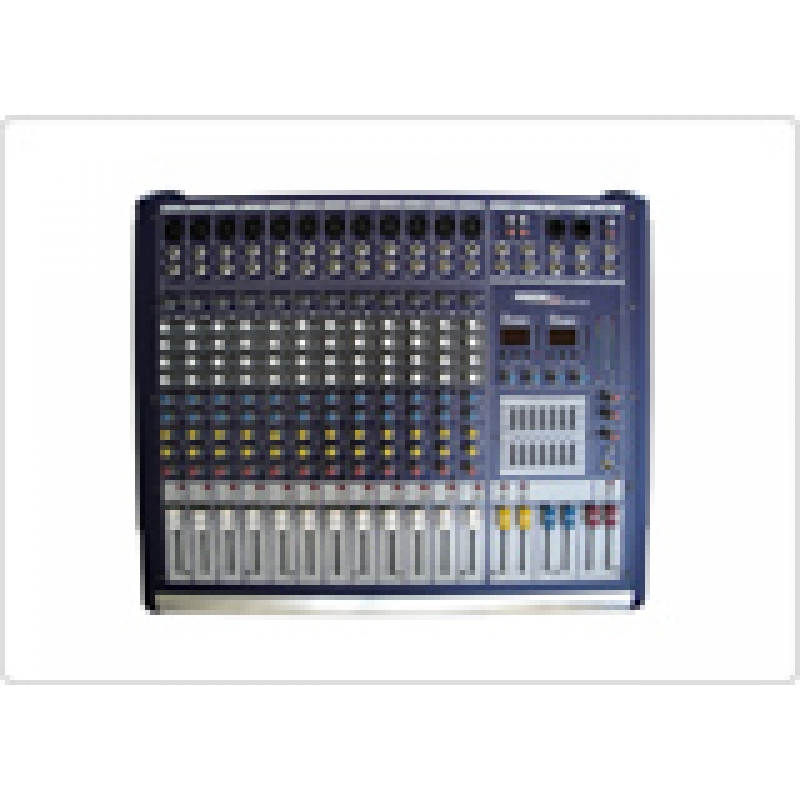

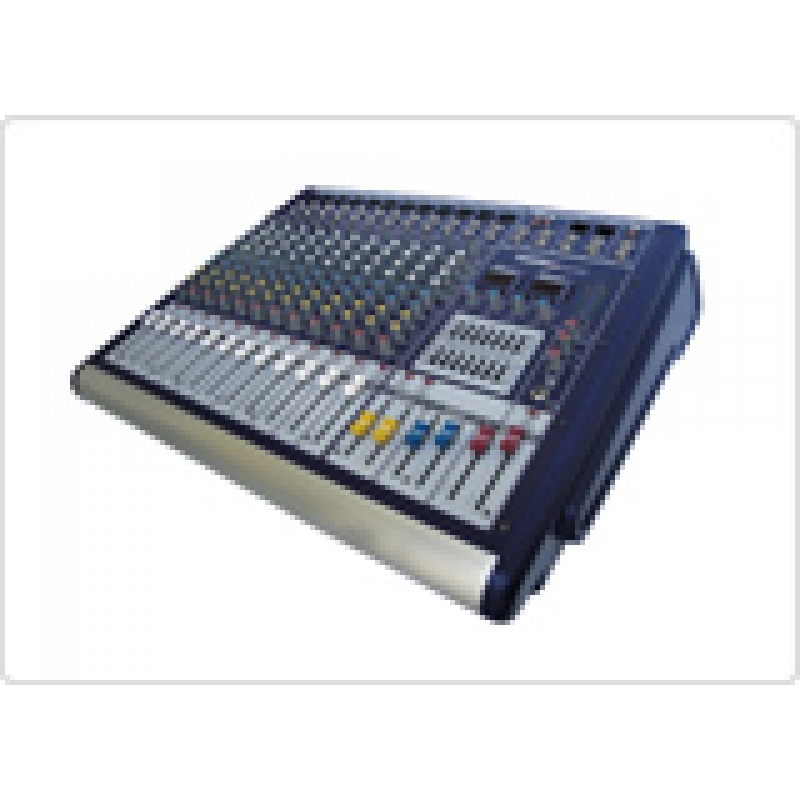

Martin Wisman PMF-1200
Ultra low noise 12 channel Mic/Line Power Mixer
Features
· 12 Mono Input Channels with silver plated XLRs and balanced Line Inputs
· Ultra low noise discrete Mic Preamps with +48V Phantom Power
· Ultra-musical 3-band EQ on all channels
· Peak LEDs all Mono Channels
· 1 Aux Send per channel for external effects
· Built in digital multi effect (16DSP)
· 2-Track Inputs assignable to Master Mix Output
· Highly accurate 10 segment Bargraph Meters
· 1 Stereo master output and 1 Stereo Group output
· (Separate Master Mix Outputs)
Specifications
Channel MC Line: 12 MONO
Channel EQ: 3 BAND
Main Buses: 1 Stereo
Group Buses: 1 Stereo
Graphic EQ (Main): 2x7 Main
Phantom Power: +48V
Effect: 16DSP
Power Out: 350W + 350W
Dimensions: 650x530x160
|
Mono Inputs |
|
|
Mic Input |
Electronically balanced, discrete input configuration |
|
Bandwidth |
10Hz to 60kHz ±3dB |
|
Distortion (THD & N) |
0.01% at +4dBu, 1kHz, Bandwidth 80kHz |
|
Mic E.I.N (22Hz – 22kHz) |
-129.5 dBu, 150 Ohm source -117.3 dBqp, 150 Ohm source -132.0 dBu, input shorted -122.0 dBqp, input shorted |
|
TRIM range |
+10dB to +60dB |
|
Line Input |
Electronically balanced |
|
Bandwidth |
10Hz to 60kHz ±3dB |
|
Distortion (THD & N) |
0.01% at +4dBu, 1kHz, Bandwidth 80kHz |
|
Line level range |
+10dBu to -40dBu |
|
Equalization |
|
|
Hi Shelving |
12kHz +/-15dB |
|
Mid Range |
2.5kHz +/-15dB |
|
Lo Shelving |
80Hz +/-15dB |
|
Master Mix Section |
|
|
Max Output |
+22dBu balanced |
|
Aux Send Max Out |
+22 dBu unbalanced |
|
Control Room Out |
+22 dBu unbalanced |
|
Signal-To-Noise Ratio |
112dB, all channels at Unity gain |
|
Power supply |
|
|
Main voltage |
~220V AC, 50Hz |
|
Power |
350W + 350W |
