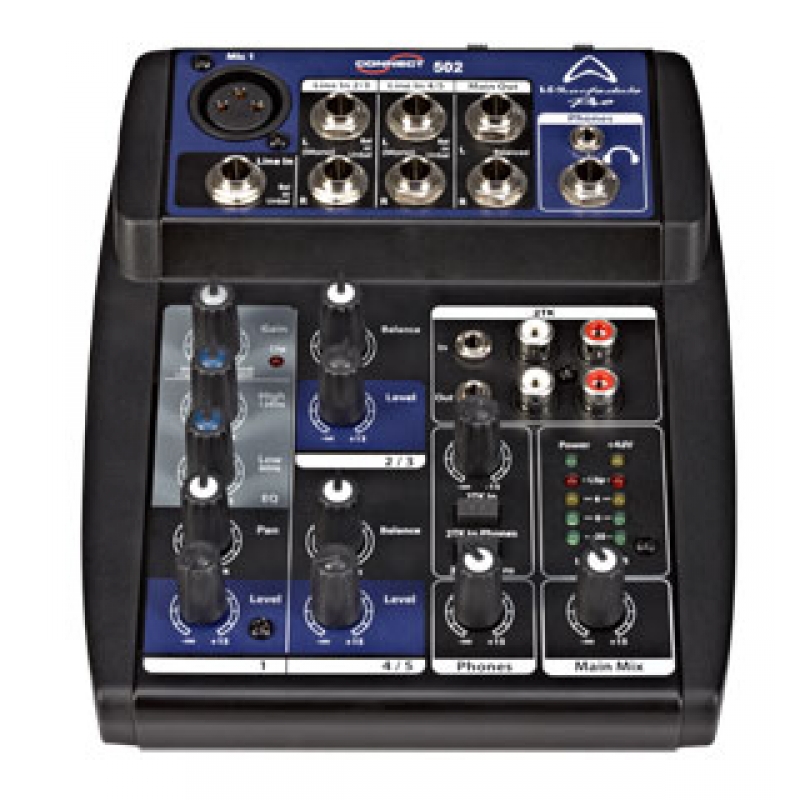

Wharfedale Connect 502
![]() Klikni za uvećanje |
|
- Switchable Global +48V Phantom Power
- Clip LED's on Mic/Line Channels
- 1x Balanced XLR Mic Input
- Pan/Balance Controls On All Channels
- 2x Stereo Channels with Balanced/Unbalanced ¼" TRS Jacks
- Separate Main Mix and Phones Outputs with Level Controls
- Stereo 4 Segment LED Meters
- Stereo ⅛” and ¼" Headphone Outputs
-
The Connect Series from Wharfedale Pro are high quality micro-mixers that are suitable for a wide range of applications.
Professional big mixer features such as Phantom powered, balanced XLR microphone inputs give you full functionality and great sound in an ultra compact and cost effective package that is ideal for live sound, home studio recording and fixed installations. The Microphone pre-amplifiers use the same high quality components and construction methods that are employed in the recently released SL Series Mixers.
The Connect 502 features an intuitive, ergonomically designed user interface that is excellent for beginners and professionals alike. Comprehensive connectivity ensures that a Connect 502 will fit into any situation you need.
SPECIFICATIONSMODEL CONNECT 502 HUM AND NOISE -127dB Mic Pre Equivalent Input Noise/ -95dBu Residual Noise MAXIMUM INPUT LEVEL MIC IN +10dBu LINE IN +20dBu 2TK IN +20dBu MAXIMUM OUTPUT LEVEL +22dBu MONO INPUT CHANNEL GAIN 50dB Variable (-50~0dB)/ (-40dB~ +10dB) LEVEL METERS Dual 4-Segment LED CLIP INDICATOR Turns on at approx +16dBu FREQUENCY RESPONSE 20Hz-20kHz ±1dB WEIGHT: (KG/LB) 1.64kg / 0.66kg (3.62lbs / 1.46lbs) MAXIMUM HEADPHONE OUTPUT LEVEL >150mw @ 32 ohms INPUT CHANNEL EQ High (±15dB) 12kHz Shelving/ Low (±15dB) 80Hz Shelving AC POWER 100~120V; 220~240V, 50/60Hz THD <0.0025% @ +14dBu DIMENSIONS (H X W X D) 253mm x 77mm x 226 mm/ (9.96" x 3.03" x 8.90")/ 486mm x 267mm x 240 mm/ (19.13" x 10.51" x 9.45")
